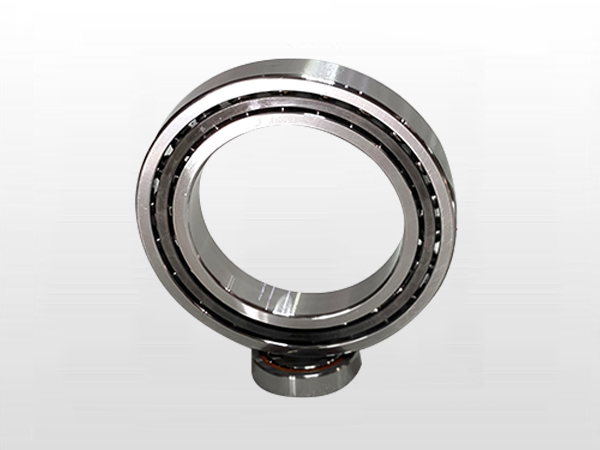

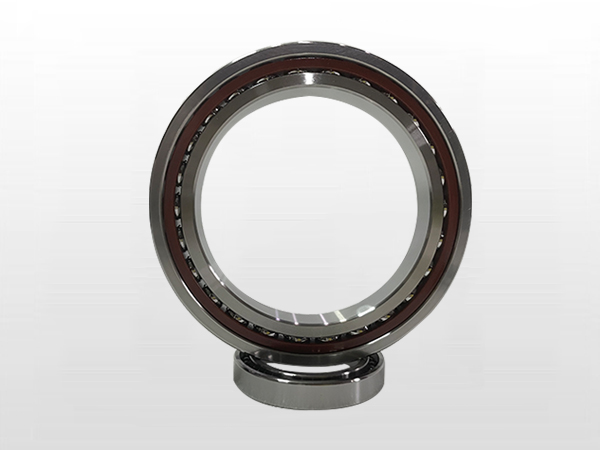

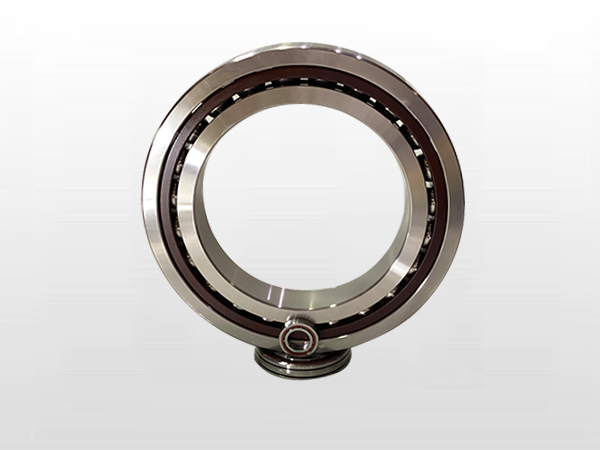

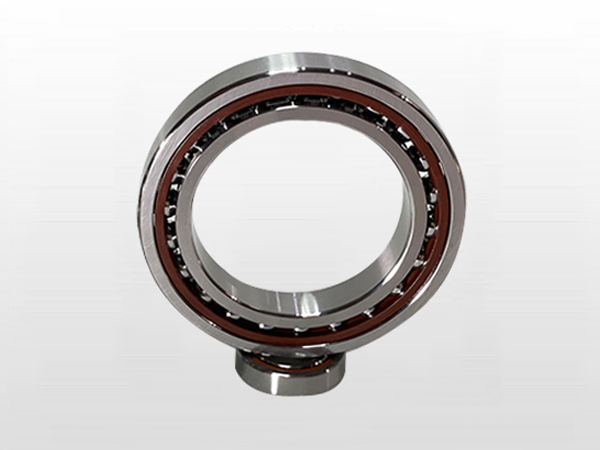

分类：高速推力角接触球轴承
公称接触角α30°/40°，内径35-130mm
详细信息
生产范围：35-130mm
生产型号：35BAN10-130BAR10
滚动体：钢球或陶瓷球
精度：P4S、P2级
配对：提供配对及客户所需要的组配等
|
型号 |
主要尺寸（mm） |
额定载荷 |
极限轴 |
作用点 |
质量（kg） |
|||||
|
d |
D |
2B |
r |
r1 |
Cr |
C0r |
||||
|
50BTR10S |
50 |
80 |
28.5 |
1.0 |
0.6 |
17.4 |
31.5 |
21.5 |
34.1 |
0.272 |
|
50BTR10H |
50 |
80 |
28.5 |
1.0 |
0.6 |
15.5 |
0.257 |
|||
|
55BTR10S |
55 |
90 |
33.0 |
1.1 |
0.6 |
21.6 |
40.0 |
26.4 |
38.3 |
0.412 |
|
55BTR10H |
55 |
90 |
33.0 |
1.1 |
0.6 |
19.7 |
0.391 |
|||
|
60BTR10S |
60 |
95 |
33.0 |
1.1 |
0.6 |
22.4 |
43.5 |
25.8 |
40.4 |
0.420 |
|
60BTR10H |
60 |
95 |
33.0 |
1.1 |
0.6 |
21.5 |
0.397 |
|||
|
65BTR10S |
65 |
100 |
33.0 |
1.1 |
0.6 |
23.1 |
47.0 |
27.3 |
42.5 |
0.447 |
|
65BTR10H |
65 |
100 |
33.0 |
1.1 |
0.6 |
23.3 |
0.406 |
|||
|
70BTR10S |
70 |
110 |
36.0 |
1.1 |
0.6 |
32.0 |
63.0 |
35.0 |
46.3 |
0.601 |
|
70BTR10H |
70 |
110 |
36.0 |
1.1 |
0.6 |
31.5 |
0.561 |
|||
|
75BTR10S |
75 |
115 |
36.0 |
1.1 |
0.6 |
32.5 |
65.5 |
36.5 |
48.4 |
0.634 |
|
75BTR10H |
75 |
115 |
36.0 |
1.1 |
0.6 |
33.0 |
0.592 |
|||
|
80BTR10S |
80 |
125 |
40.5 |
1.1 |
0.6 |
38.0 |
78.0 |
43.0 |
52.7 |
0.875 |
|
80BTR10H |
80 |
125 |
40.5 |
1.1 |
0.6 |
39.0 |
0.821 |
|||
|
85BTR10S |
85 |
130 |
40.5 |
1.1 |
0.6 |
38.5 |
81.5 |
50.5 |
55.2 |
0.971 |
|
85BTR10H |
85 |
130 |
40.5 |
1.1 |
0.6 |
41.0 |
0.915 |
|||
|
90BTR10S |
90 |
140 |
45 |
1.5 |
1.0 |
50.0 |
105 |
58.0 |
59.5 |
1.198 |
|
90BTR10H |
90 |
140 |
45 |
1.5 |
1.0 |
52.5 |
1.124 |
|||
|
95BTR10S |
95 |
145 |
45 |
1.5 |
1.0 |
51.0 |
110 |
69.0 |
61.0 |
1.320 |
|
95BTR10H |
95 |
145 |
45 |
1.5 |
1.0 |
55.0 |
1.231 |
|||
|
100BTR10S |
100 |
150 |
45 |
1.5 |
1.0 |
51.5 |
114 |
66.5 |
63.7 |
1.399 |
|
100BTR10H |
100 |
150 |
45 |
1.5 |
1.0 |
57.0 |
1.307 |
|||
|
105BTR10S |
105 |
160 |
49.5 |
2.0 |
1.0 |
58.5 |
131 |
84.0 |
68.0 |
1.740 |
|
105BTR10H |
105 |
160 |
49.5 |
2.0 |
1.0 |
65.5 |
1.624 |
|||
